BLAM Relax 130RFS 130mm (5.25inch) Hi-efficiency 2ohm, 2-Way Component Speakers

The BLAM RELAX 130 RFS is the updated version of the popular 130RS stand-alone series. The playback range of the new RFS version has been increased compared to the previous model (80Hz – 28kHz). The completely renewed composite frame also contains a renewed, stronger connector terminal than before, and the element can be installed in more and more cars, thanks to the reduced installation depth.

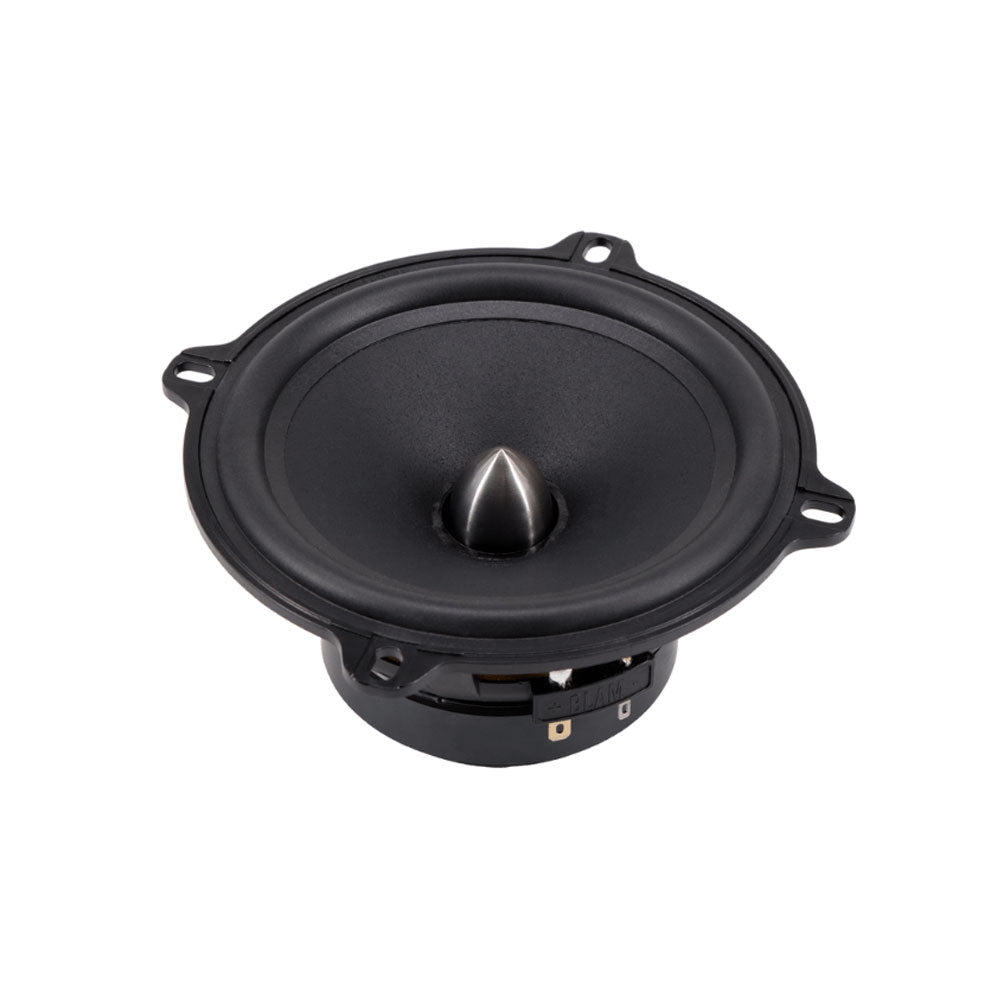

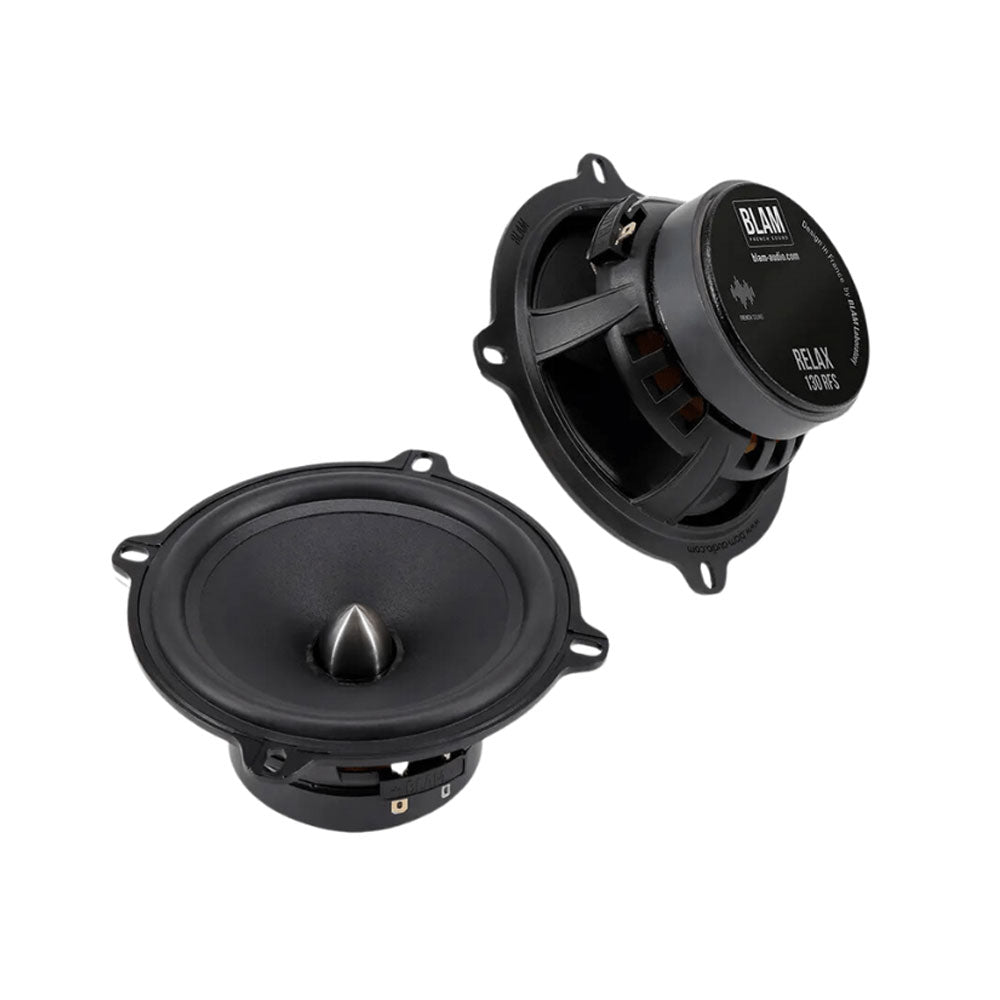

The 130RFS consists of two 130mm midbass with separate 20mm soft dome tweeters, and two 6dB/octave audiophile high-pass crossovers. The membrane is made of high-quality cellulose pulp combined with butyl suspension. Generous dimensions of the magnet system (70 x 15mm) contribute to optimal QTS, a good level of sensitivity and high power handling. The tweeter is equipped with a Neodymium magnet, soft dome, and 20mm voice coil with CCAW wire (copper/aluminium mixture).

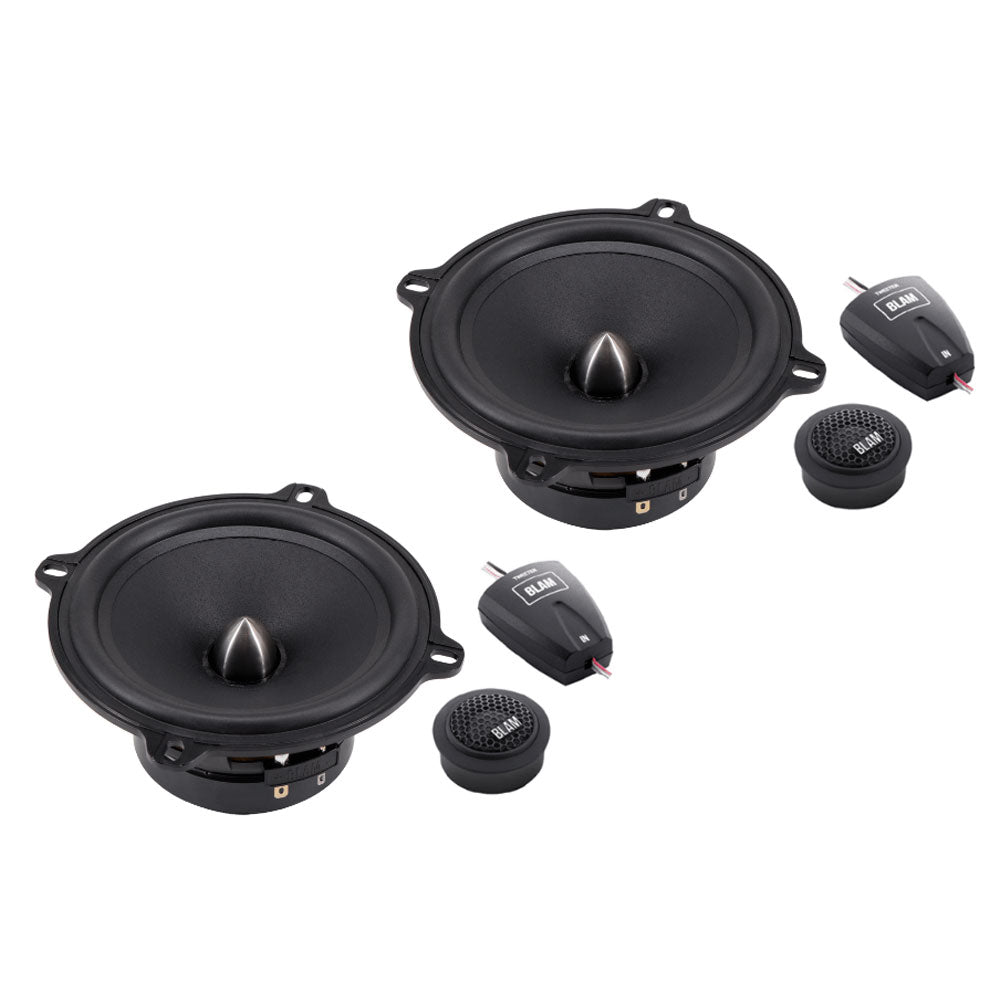

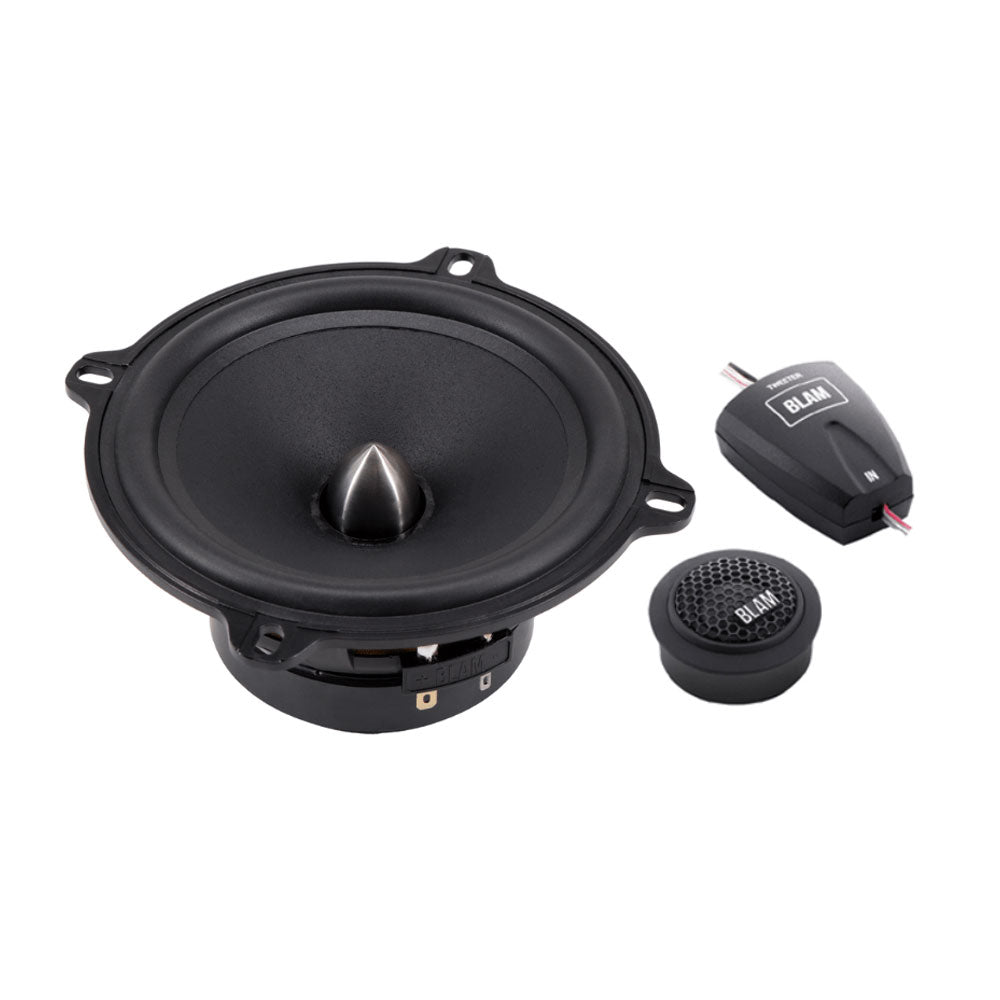

This kit consists of 2x 130 mm (5.25") woofers, 2x 20 mm soft dome tweeters and 2 6dB/octave high pass filters/crossovers.



Technical Features

130mm (5.25‘’) components

20 mm soft dome tweeters

6dB/octave high pass filters

Max. power 120 W

Nominal Power 60 W

Frequency response 80 Hz - 28 kHz

Sensitivity 91 dB

Impedance 2 Ω



Technical Composition

Original BLAM salad bowl in fiberglass reinforced composite

Membrane in high quality treated cellulose pulp

Peripheral suspension in butyl

long life Spider “Conex”

25 mm coil on Kapton support

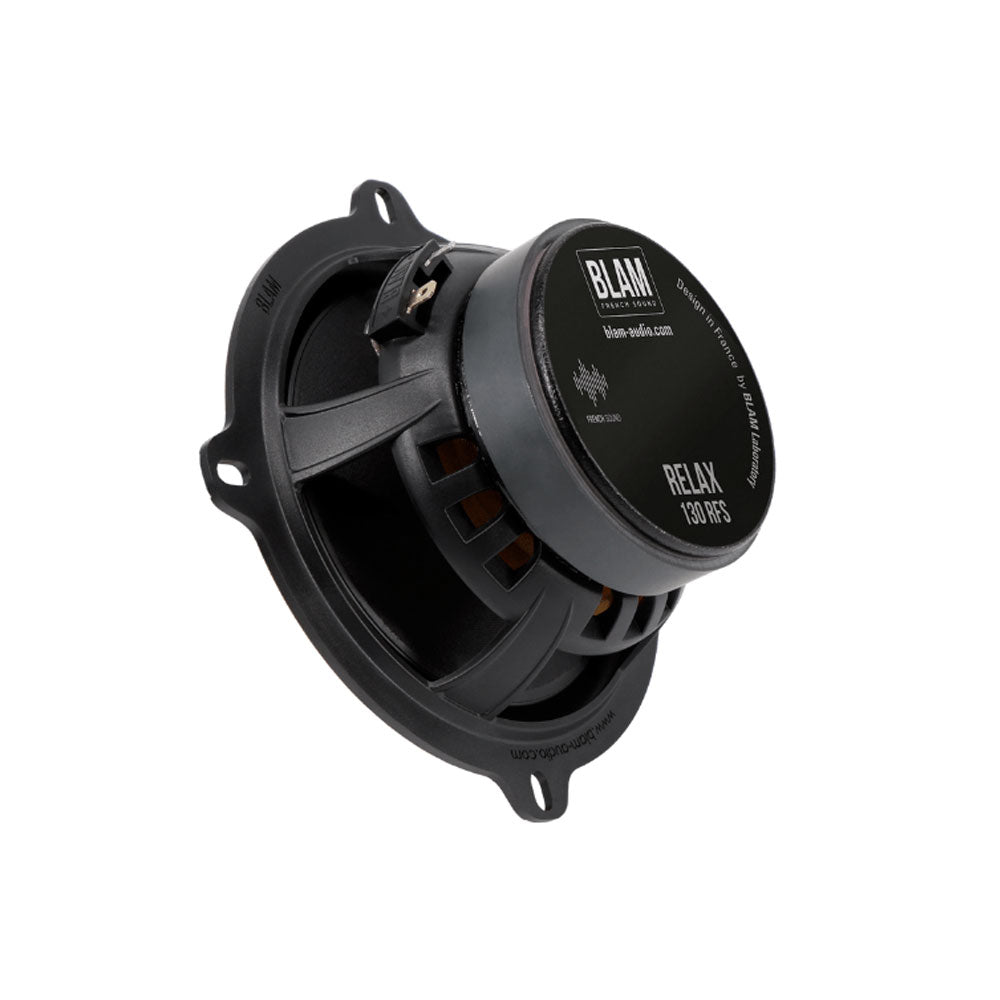

Ferrite motor 80 mm x 15 mm

Thick magnetic circuit (4 mm )

High quality 20mm soft dome tweeter

6dB/octave high pass filter

Tweeter level adjustable to 0 dB or attenuated to -3 dB



Technical Specifications

Component Speaker

Max power 120 W

Nominal power 60 W

Impedance 2 Ω

Freq. Response 80 Hz - 10 kHz

Sensitivity (2,83V/1m) 91 dB

Magnet Ferrite

Motor size Ø x h 80 x 15 mm 3.1 ‘’x 0.6 ‘’

Total driver displacement 0.11 l 0.004 cf

Weight of one component 0.722 kg 1.592 lb

Voice coil Ø 25 mm 0.984“

Voice coil height 11.0 mm 0.433“

Cone Cellulose pulp

Technical Parameters

effective Ø (d) 109 mm

Sd 93.31 cm²

Xmax 3.5 mm

Re 2.58 Ω

Fs 83.25 Hz

Le 111.38 µH @ 1 kHz

L2 185.85 µH @10 kHz

Vas 5.77 L

Mms 7.75 g

Cms 0.471823 m/N

BL 4.14 Tm

Qts 0.56

Qes 0.61

Qms 6.75

Sensitivity 89 dB



Supplied accessories

Fixing screws

Mounting accessories for tweeters

User manual
