BMW 3 Series E90 E91 E92 E93 Boot Handle Trunk Rear Reversing Camera

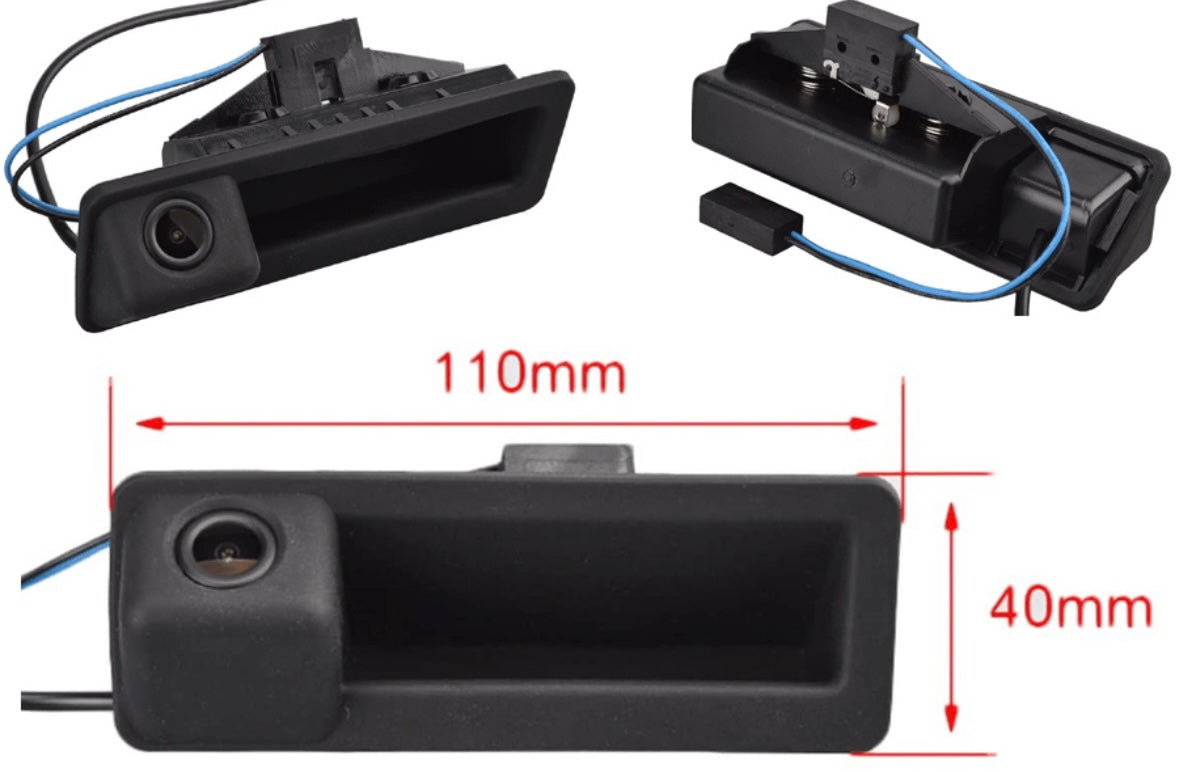

Special rear view camera specially designed for various BMW 1, 3 ,5 X1, X5 and X6 car models.

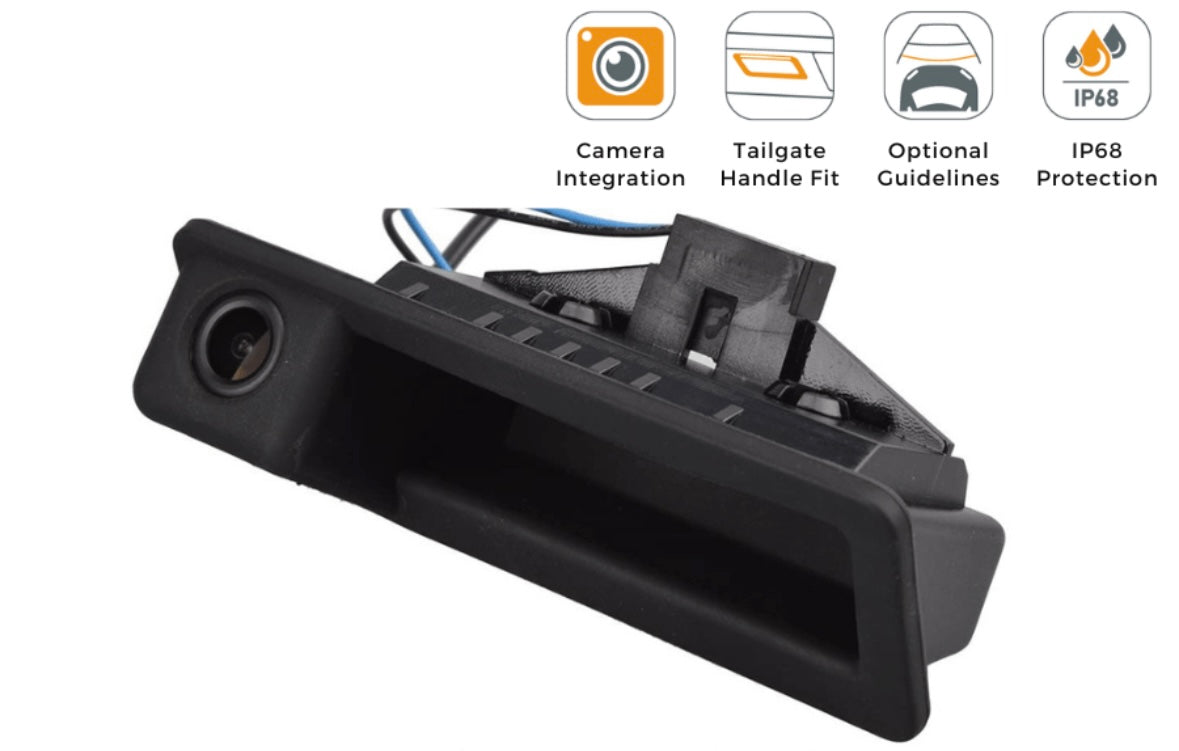

This camera secures into the place of the original tailgate handle housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

This camera is also equipped with optional dynamic parking guidelines which can be enabled or disabled.

Product information

• 12v power
• Colour CMOS image, NTSC.
• Parking guidelines: Optional
• IP68 Waterproof

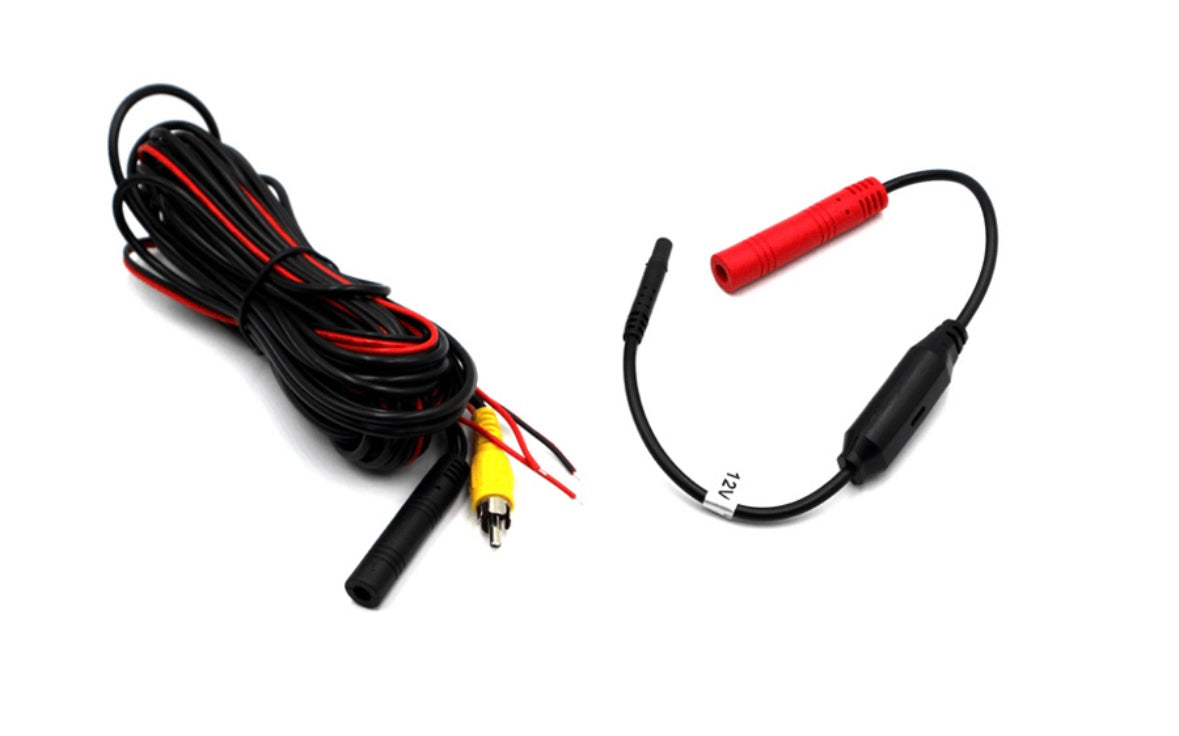

• Includes power and video extension cables

Installation Notes

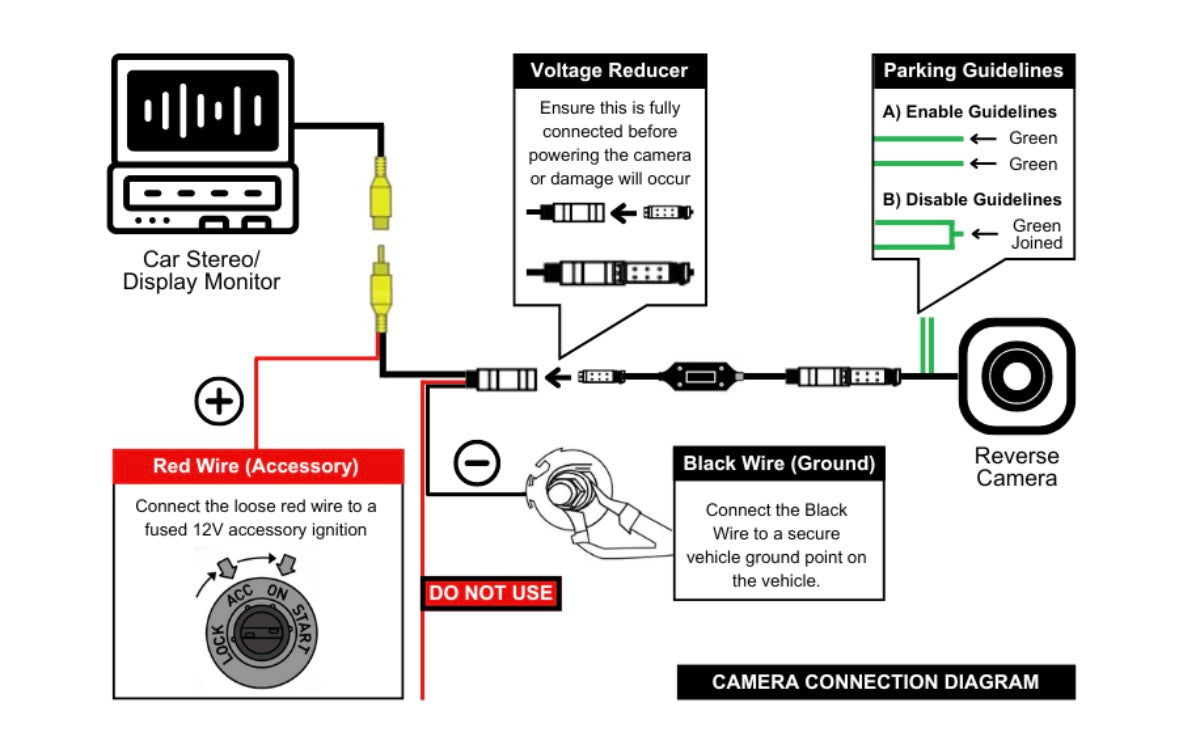

• To disable parking guidelines, join the 2 Green Wires on the camera lead

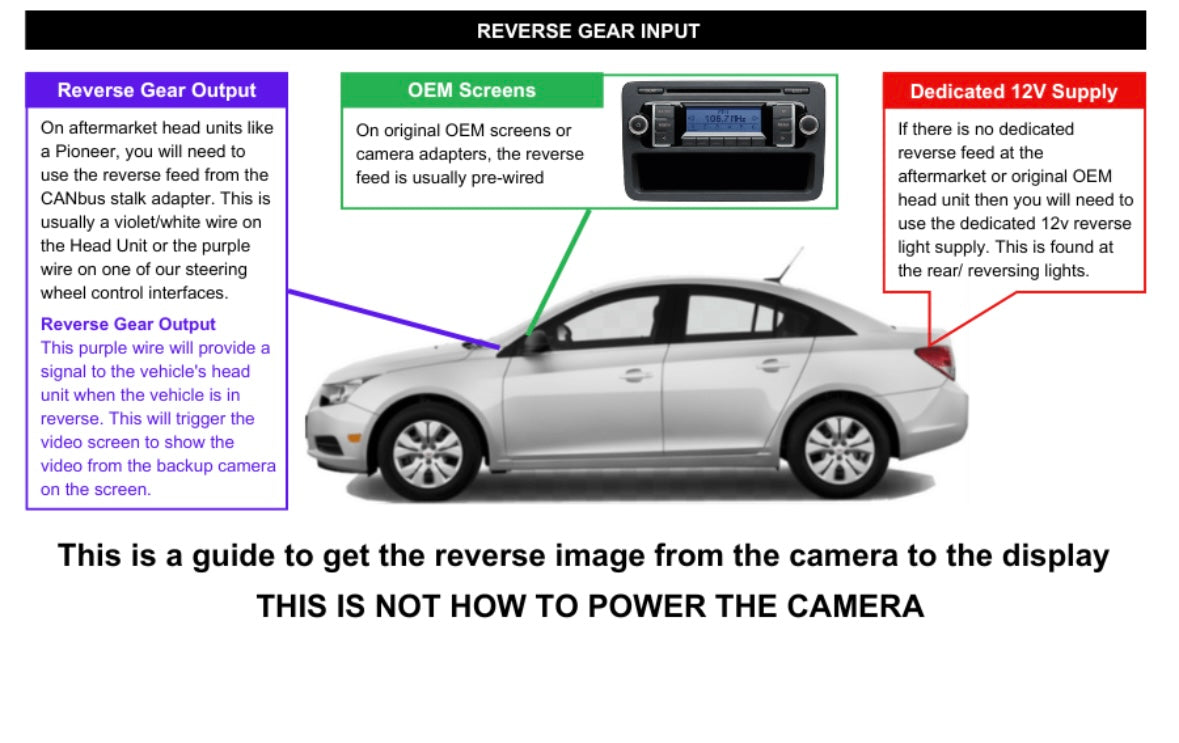

• Additional adapters/ interfaces will be required to connect to an original factory fitted system/ screen.
• Do not power the camera from the reversing lights

1 series (E81/E82/E87/E88) (2004 - 2010 )

3 series (E90/E91/E92/E93) (2006 - 2011)

5 Series (E60) (E61) (2004 - 2010 )

X1 (E84) (2009-2015)

X5 (E70) (2007 - 2013)

X6 (E71) (2008 - 2014)
